Product introduction:

Close Control Unit (CCU) also Know as Precision Air Conditioner or Close Control Air Conditioner or Computer Room Air Conditioner (CRAC) or server room air conditioner use for precise control of Temperature and Humidity required for critical application like Server room, Datacenter, Laboratories, Telecommunication room etc.

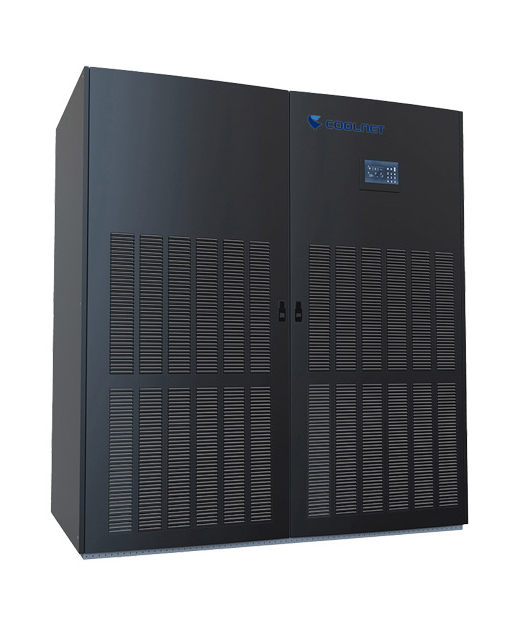

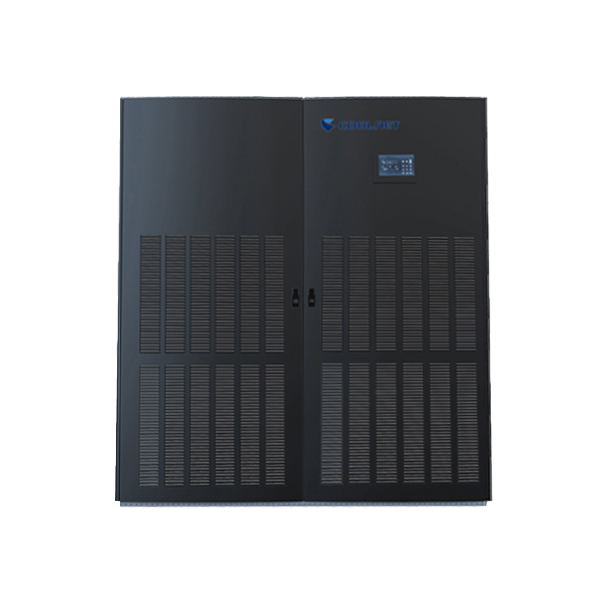

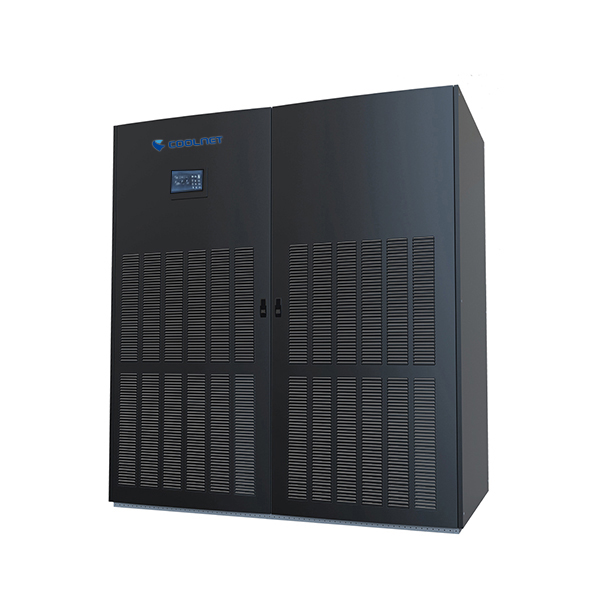

Coolsmart series constant temperature and humidity precision air conditioner is with modular design, high EER, large screen human-computer interface and intelligent control system. It has options of air-cooled, water-cooled, chilled water and double source cooled.

INQUIRE

Features:



IDC rooms solutions

Coolnet precise air conditioning can control temperature, humidity and particle filtration within tight tolerances 24 hours a day and can be remotely monitored.

Higher reliable scroll compressor

Famous brand, Copeland, high efficient scroll compressor.

High efficient evaporator, energy-saving dehumidify

Immersed electrode humidifier: High reliability, well-known brand, Carel.

High efficient indoor & outdoor motors: Well-known brand, Ziehl-Abegg.

Double wall casing design, improve heat insulation

Heat-insulated casing can prevent the condensate from the unit body.

Galvanized steel sheet of nitrogen treatment and powder spray coating make the casing of indoor unit anti-rust and fire resistance.

Accurate microprocessor control technology

Air plenum box as optional (only for top delivery models)

Easy maintenance

Series:

Cybermaster/Coolsmart series precise air conditioning:

  • Indoor ambient temperature range: 0°C~40°C
  • Outdoor ambient temperature range: -15°C~48°

Cybermaster/Coolsmart DX air cool series precise air conditioning:

  • Outdoor ambient temperature range:-20°C~45°C ( -34°C~45°C, Customized)
  • Indoor ambient temperature range: 0°C~45

Advantage:

Precise temperature and humidityControl

  • CoolMaster has constant temperature andhumidity function,temperature control accuracyof ±1'C,relative humidity control accuracy of ±5%,
  • Temperature control accuracy can reach ±0. 5'℃and relative humidity control accuracy can reach±2% for laboratory,warehouse and so on.

Intelligent Communication Function

  • RS485 standard interface is compatible withMosbus protocol. Through the communicationinterface, CoolMaster can be access to Dynamicenvironment monitoring monitoring, DCIM, BMS,remote monitoring system.
  • CoolMaster can be equipped with a TCP/IPcommunication card for SNMP communicationinterface and direct access via network IPaddress.

Applications:

Single module solution:

It is suitable for small and medium-sized data centers with a total power consumption of
less than 120kW and an area of less than 100 square meters. Meet the small and large
enterprise data center needs.

Multi-module solution:

Through multiple module layout replication, flexible and rapid deployment, to build
large data centers. For the needs of large data centers in IDC, large enterprises,
financial centers, governments, military, supercomputing centers, education, medical and
other industries
